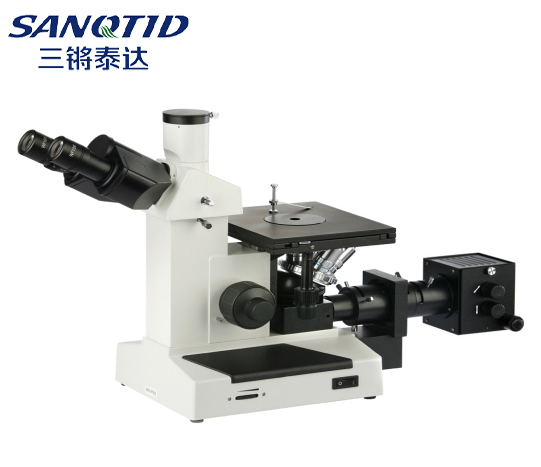

XJL-17AT倒置金相顯微鏡配置優良的平場消色差物鏡與大視野平場目鏡,照明系統采用柯勒照明方式,視場照明均勻。產品結構緊湊,操作方便舒適。適用于金相組織及表面形態的顯微觀察,是金屬學、礦物學、精密工程學研究的理想儀器。
XJL-17AT Inverted metallurgical microscope is equipped excellent plan achromatic objectives and wide field eyepieces, the illumination mode is Kohler, so that the field is very uniformity. The instrument is designed very compact in structure, to make the operation easiy and comfortable. This is ideal optical instrument for micro observation in metallographic structure and surface morphology. It is suitable for research in metallography, mineralogy, precision engineering, etc.
技術規格 Specification | ||
目鏡 Eyepiece | 大視野 WF10X(視場數Φ18mm) Wide field WF10X(field number:Φ18mm) | |
平場消色差物鏡 Plan achromatic objective | PL L10X/0.25 工作距離(Work distance):8.80 mm | |
PL L20X/0.40 (彈簧Spring) 工作距離(Work distance):8.60 mm | ||
PL L40X/0.60 (彈簧Spring) 工作距離(Work distance):3.73 mm | ||
PL 100X/1.25(油 Oil)(彈簧Spring) 工作距離(Work distance):0.33 mm | ||
目鏡筒 Eyepiece tube | 30?傾斜,瞳距調節范圍53~75mm. Inclination angle is 30? and interpupillary distance is 53~75mm. | |
調焦機構Focus system | 粗微動同軸調焦,帶鎖緊和限位裝置,微動格值:2μm. Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing is 2μm. | |
轉換器 Nosepiece | 四孔(內向式滾珠內定位) Quintuple (Backward ball bearing inner locating) | |
載物臺 Stage | 雙層機械移動式載物臺,外形尺寸:180mmX150mm,移動范圍15mmX15mm. Mechanical stage overall size: 180mmX150mm and moving range : 15mmX15mm. | |
圓形可旋轉載物臺板尺寸:最大外徑Ф67.5mm,最小通光口徑Ф12mm. Rotundity and rotatable stage size: maximal measurement is Ф67.5mm and minimal clear aperture is Ф12mm. | ||
照明系統 Illumination system | 6V20W鹵素燈,亮度可調6V20W halogen and brightness enable control. | |
內置視場光闌、孔徑光闌 Integrated field diaphragm , aperture diaphragm. | ||
配插片式磨砂玻璃,黃、綠、藍濾色片Equipped with flashboard type frosted glass and yellow ,green and blue filters | ||
選配件 Optional Accessory | 目鏡Eyepiece | 分劃目鏡10X(Φ18mm)Dividing eyepiece(Φ18mm) |
物鏡Objective | 50X、60X、80X、100X(干式Dry) | |
CCD接頭CCD adapter | 0.5X、1X、0.5X帶分劃尺(With dividing) | |
偏光裝置 Polarizing device | 插片式起偏器,可0~90度旋轉。Flashboard ploarizer can be rotated from 0?~90?. | |
拉板式檢偏器,可自由切換。Puller type analyzer can be swithched freely. | ||
攝像儀Camera | USB輸出:130/200/300萬像素USB output: 1.3M/2.0M/3.0M pixel VIDEO輸出:380/520 電視線 VIDEO output: 380/520 TV Line | |
數碼相機接頭 Digital camera adapter | CANON(EF) NIKON( F) | |
XJL-17AT倒置金相顯微鏡配置優良的平場消色差物鏡與大視野平場目鏡,照明系統采用柯勒照明方式,視場照明均勻。產品結構緊湊,操作方便舒適。適用于金相組織及表面形態的顯微觀察,是金屬學、礦物學、精密工程學研究的理想儀器。
XJL-17AT Inverted metallurgical microscope is equipped excellent plan achromatic objectives and wide field eyepieces, the illumination mode is Kohler, so that the field is very uniformity. The instrument is designed very compact in structure, to make the operation easiy and comfortable. This is ideal optical instrument for micro observation in metallographic structure and surface morphology. It is suitable for research in metallography, mineralogy, precision engineering, etc.
技術規格 Specification | ||
目鏡 Eyepiece | 大視野 WF10X(視場數Φ18mm) Wide field WF10X(field number:Φ18mm) | |
平場消色差物鏡 Plan achromatic objective | PL L10X/0.25 工作距離(Work distance):8.80 mm | |
PL L20X/0.40 (彈簧Spring) 工作距離(Work distance):8.60 mm | ||
PL L40X/0.60 (彈簧Spring) 工作距離(Work distance):3.73 mm | ||
PL 100X/1.25(油 Oil)(彈簧Spring) 工作距離(Work distance):0.33 mm | ||
目鏡筒 Eyepiece tube | 30?傾斜,瞳距調節范圍53~75mm. Inclination angle is 30? and interpupillary distance is 53~75mm. | |
調焦機構Focus system | 粗微動同軸調焦,帶鎖緊和限位裝置,微動格值:2μm. Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing is 2μm. | |
轉換器 Nosepiece | 四孔(內向式滾珠內定位) Quintuple (Backward ball bearing inner locating) | |
載物臺 Stage | 雙層機械移動式載物臺,外形尺寸:180mmX150mm,移動范圍15mmX15mm. Mechanical stage overall size: 180mmX150mm and moving range : 15mmX15mm. | |
圓形可旋轉載物臺板尺寸:最大外徑Ф67.5mm,最小通光口徑Ф12mm. Rotundity and rotatable stage size: maximal measurement is Ф67.5mm and minimal clear aperture is Ф12mm. | ||
照明系統 Illumination system | 6V20W鹵素燈,亮度可調6V20W halogen and brightness enable control. | |
內置視場光闌、孔徑光闌 Integrated field diaphragm , aperture diaphragm. | ||
配插片式磨砂玻璃,黃、綠、藍濾色片Equipped with flashboard type frosted glass and yellow ,green and blue filters | ||
選配件 Optional Accessory | 目鏡Eyepiece | 分劃目鏡10X(Φ18mm)Dividing eyepiece(Φ18mm) |
物鏡Objective | 50X、60X、80X、100X(干式Dry) | |
CCD接頭CCD adapter | 0.5X、1X、0.5X帶分劃尺(With dividing) | |
偏光裝置 Polarizing device | 插片式起偏器,可0~90度旋轉。Flashboard ploarizer can be rotated from 0?~90?. | |
拉板式檢偏器,可自由切換。Puller type analyzer can be swithched freely. | ||
攝像儀Camera | USB輸出:130/200/300萬像素USB output: 1.3M/2.0M/3.0M pixel VIDEO輸出:380/520 電視線 VIDEO output: 380/520 TV Line | |
數碼相機接頭 Digital camera adapter | CANON(EF) NIKON( F) | |
